Epic offers the following
parts for Volkmann machines: |
|
OEM NO. |
EPIC PART# |
DESCRIPTION |
ASSY |
POSITION |
|
(301077) |
EE437555 |
Screw,
ISKT Button Head, 6X20 |
VO201- BA4 |
35A |
|
VO202- BA4 |
25A |
|
VO255 |
16A |
|
VO266 |
10 |
|
VO273 |
12 |
|
VO275 |
35 |
|
VO280 |
30A |
|
VO414 |
26 |
|
VO417 |
33 |
|
VO418 |
10 |
|
VO424 |
13 |
|
VO425 |
12 |
|
VO550 |
12 |
|
VO564 |
29 & 44 |
|
VO566 |
17 |
|
(301861) |
EE481171 |
Entry
Tube, Long Metal, with External Retaining Ring and Piston Insert,
Complete, 05/050, BA4 |
VO067 |
03 |
|
301887 |
EE402211 |
Elbow
Half, Deflection Device, Air, with Air Channel, 05C/050C, BA4/BA5 |
VO076 |
11 |
|
VO574 |
14 |
|
301895 |
EE401060 |
Comb,
Yarn Catch, Heavy Duty, 0.8mm, 05 BA3/BA4, 06-09 BA3
|
VO010 |
14 |
|
VO069 |
12 |
|
VO313 |
29A |
|
301911 |
EE481174 |
Tube,
Entry, Air, Short, with Deep Laser Etched Numbers, without Retaining Ring
(Metal), 05-09, BA3/BA4 |
VO350 |
20 |
|
VO357 |
34 |
|
302186 |
EE480655 |
Cap,
Chrome, for Plastic Entry Tube,
05-09, BA4-BA6 |
VO209 |
25 |
|
VO404 |
06 |
|
VO560 |
02 |
|
(302356) |
EE402180 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Aluminum Bottom |
VO066 |
01G |
|
EE440372 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Stainless Steel
Bottom |
01F |
|
302521 |
EE481579 |
Magnet,
Pot, North, 05/05C, BA4, DT-2 |
VO066 |
15A |
|
302539 |
EE481578 |
Magnet,
Pot, South, 05/05C, BA4, DT-2 |
VO066 |
14 |
|
302612 |
EE481580 |
Plate,
Magnet, 05/05C, BA4, DT-2 |
VO066 |
16 |
|
302638 |
EE481581 |
Bracket,
Magnet, for Stainless Steel Protection Pot, 05/05C, BA4, DT-2 |
VO066 |
17 |
|
303503 |
EE401610 |
Coupling,
Aluminum, 25mm, with Screw, 30mm Wide |
VO013 |
03A |
|
VO016 |
02 |
|
VO192 |
23 |
|
VO193 |
23 |
|
VO197 |
08 |
|
VO252 |
12 |
|
VO253 |
38 |
|
VO260 |
08A |
|
VO315 |
09A |
|
VO318 |
03 |
|
VO417 |
05A, 32, 34 |
|
VO418 |
15 |
|
VO422 |
04 |
|
VO464 |
11 |
|
VO566 |
21 & 22 |
|
VO568 |
04 |
|
VO594 |
10 |
|
304212 |
EE401536 |
Plate,
Spindle Rotor, Stainless Steel, 05/050C, BA3/BA4 |
VO065 |
42 |
|
(304733) |
EE401181 |
Bearing,
Ball, Replaceable for 05C/050C Deflection Device and all Epic Thread
Guide Rollers |
VO011 |
04A & 21A |
|
VO012 |
08D |
|
VO084 |
17C & 34C |
|
VO191 |
10D, 11F, 20B, 21B |
|
VO192 |
13/14B |
|
VO194 |
24A & 26B |
|
VO252 |
27/28B & 32B |
|
VO260 |
21/22B |
|
VO416 |
10B |
|
VO433 |
24 |
|
VO501 |
13A |
|
VO565 |
29C |
|
305516 |
EE480330 |
Flyer
Wire Only, Chrome, S-Twist, 09, BA1-BA6 |
VO184 |
23C |
|
VO2.4.1 |
26C |
|
VO209 |
13C |
|
VO304 |
19C |
|
VO341 |
25C |
|
VO357 |
21 |
|
VO360 |
17 |
|
VO404 |
21C |
|
305524 305565 |
EE480149 |
Flyer
Wire Only, Chrome, Z-Twist, 09,
BA1-BA6 |
VO184 |
23D |
|
VO209 |
13F |
|
VO304 |
19D |
|
VO341 |
26A |
|
VO357 |
21A |
|
VO360 |
17A |
|
VO404 |
21D |
|
305623 |
EE481476 |
Roller
with Bracket, for Spindle Tape, 8mm Mt. Hole, 05, BA3-BA4 (71/84) |
VO003 |
29 |
|
305631 |
EE481448 |
Roller
(Bakelite), Spindle Tape, 8mm with Screw, 05, BA3-BA4 |
VO003 |
01 |
|
(305682) |
EE402180 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Aluminum Bottom |
VO066 |
01G |
|
EE440372 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Stainless Steel
Bottom |
01F |
|
305797 |
EE481196 |
Filter,
Blue, for Volcojet/Pneumajet Air Channel in Pot, 05, BA3 and 05-09,
BA4-BA6 |
VO006 |
22 |
|
VO066 |
10A |
|
VO175 |
25 |
|
VO282 |
17A |
|
VO402 |
35 |
|
305854 |
EE440110 |
Cabler
Cap, Stainless, 05C/050C, BA3-BA5, (Large Window) |
VO007 |
03 |
|
VO007A |
03 |
|
VO558 |
03 |
|
VO559 |
04 |
VO617 |
08 |
|
(305862) |
EE440396 |
Pot,
Shell, New, Stainless Steel with Slots, 05/05C, BA4 |
VO066 |
19 |
|
305920 |
EE401812 |
Disc,
Centering, 41.0 & 68.0mm, Shallow Back, BA4/BA5 |
VO073 |
15G |
|
VO203 |
05J |
|
VO256 |
15G |
|
VO426 |
15G |
|
VO571 |
09G |
|
306589 |
EE480916 |
Spacer
Ring, 5mm for Package Lift, 07-08, BA3 and Upgraded 07-09, BA1/BA2 |
VO175 |
03A |
|
VO2.3.2 |
26B |
|
VO282 |
08A |
|
VO303 |
32A |
|
VO333 |
32 |
|
VO356 |
06 |
|
306811 |
EE440110 |
Cabler
Cap, Stainless, 05C/050C, BA3-BA5, (Large Window) |
VO007 |
03 |
|
VO007A |
03 |
|
VO558 |
03 |
|
VO559 |
04 |
VO617 |
08 |
|
307165
|
EE402283 |
Magnet Pocket Complete for Stainless Steel Pot, 05/05C, BA4, DT2 |
VO066 |
02 |
| 307231 |
EE481576 |
Magnet,
Spindle Bank, South, 05/05C, BA4/BA5 |
VO062 |
03 |
|
VO553 |
16 |
|
VO554 |
13 |
|
307249 |
EE481577 |
Magnet,
Spindle Bank, North, 05/05C, BA4/BA5 |
VO062 |
03 |
|
VO553 |
17 |
|
VO554 |
12 |
|
307561 |
EE401602 |
Cap,
Metal Entry, for Adaptor, 05-09,
BA1-BA4 |
VO182 |
03 |
|
VO2.5.1 |
02 |
|
VO207 |
02 |
|
307637 |
EE480986 |
Ring,
for Friction Roll Stop, BA4 |
VO087 |
10 |
|
VO281 |
08 |
|
(307637) |
EE401043 |
Ring,
Spiral for Friction Roll Stop, 05 BA3/BA4 & 06-09 BA1-BA4 |
VO017 |
05 |
|
VO5.7.2 |
09 |
|
VO504 |
25 |
|
307686 |
EE440297 |
Friction
Roller, 10", for Clutch, with 70mm Gray Cot, 05, BA4 |
VO087 |
02B |
|
VO281 |
02D |
|
308262 |
EE440345 |
Sleeve,
Chrome, for 10" Friction Roll with Clutch, 05-06, BA4 |
VO087 |
16 |
|
VO281 |
14B |
|
308361 |
EE480987 |
Collar,
Set for Friction Roller Stop, 05-09, BA4 |
VO087 |
09 |
|
VO281 |
07 |
|
308791 |
EE481540 |
Locking
Arm Complete, DT - 1/2, 05-09, BA4-BA5 |
VO078 |
02 |
|
VO201 |
27 |
|
VO202 |
29 |
|
VO255 |
29 |
|
VO266 |
32 |
|
VO424 |
28 |
|
308809 |
EE481545 |
Locking
Arm Track with 12mm Pivot Hole for DT-2, 05-09, BA4-BA5 |
VO078 |
02 |
|
VO201- BA4 |
28 |
|
VO202- BA4 |
31 |
|
VO266 |
31 |
|
VO273 |
32 |
|
VO424 |
27 |
|
VO425 |
29 |
|
VO550 |
33 |
|
309856 |
EE481539 |
Locking
Arm Assembly Complete, DT-1, 05-09, BA4-BA5 |
VO078 |
02 |
|
VO202- BA4 |
34 |
|
VO255 |
32 |
|
VO266 |
02 |
|
310318 310755 |
EE401605-1 |
Disc,
Centering, 73.0mm, Shallow Back (Actual Size 72.5mm), BA4/BA5 (For Tubes
Only) |
VO073 |
15O |
|
VO203 |
05R |
|
VO256 |
15O |
|
VO426 |
15O |
|
VO571 |
09O |
|
310763 |
EE480091 |
Rod,
Traverse Guide, 05-09, BA3-BA6 |
VO015 |
10 |
|
VO071 |
13 |
|
VO196 |
09 |
|
VO254 |
10 |
|
VO317 |
04 |
|
VO421 |
23 |
|
VO567 |
09 |
|
310771 |
EE480229 |
Bushing,
Metal, for Traverse, 05-09, BA3-BA5 |
VO015 |
09 |
|
VO071 |
14 |
|
VO196 |
10 |
|
VO254 |
11 |
|
VO317 |
03 |
|
VO421 |
24 |
|
VO567 |
25 |
|
311359 |
EE481161 |
Latch
for Overhead Creel, 05C/050C, BA4 |
VO074 |
08 |
|
(311456) |
EE401571-2 |
Disc,
Centering, 31.5mm, Shallow Back, BA4/BA5 |
VO073 |
15B1 |
|
VO203 |
05D |
|
VO256 |
15B1 |
|
VO427 |
01 |
|
VO571 |
09B1 |
|
312629 |
EE480465 |
Thread
Guide Roller Assembly with 6mm Stud with Dual Groove Spiral Cap, 05-09,
BA4-BA5 |
VO011 |
23 |
|
VO012 |
08A |
|
VO084 |
17 & 34 |
|
VO191 |
10, 11, 20, 21 |
|
VO192 |
13/14 |
|
VO194 |
24 & 26 |
|
VO252 |
27/28 & 32 |
|
VO260 |
21/22 |
|
VO264 |
12 |
|
VO416 |
06A |
|
VO565 |
29 |
|
(312629) |
EE401181 |
Bearing,
Ball, Replaceable for 05C/050C Deflection Device and all Epic Thread
Guide Rollers |
VO011 |
04A & 21A |
|
VO012 |
08D |
|
VO084 |
17C & 34C |
|
VO191 |
10D, 11F, 20B, 21B |
|
VO192 |
13/14B |
|
VO194 |
24A & 26B |
|
VO252 |
27/28B & 32B |
|
VO260 |
21/22B |
|
VO416 |
10B |
|
VO433 |
24 |
|
VO501 |
13A |
|
VO565 |
29C |
VO611 |
08 |
|
EE480465-1 |
Thread
Guide Roller Assembly with 6mm Stud without Dual Groove Spiral Cap,
05-09, BA4-BA5 |
VO011 |
21 |
|
VO012 |
08C |
|
VO084 |
17A & 34A |
|
VO191 |
10A, 11B, 20A, 21A |
|
VO192 |
13/14A |
|
VO194 |
26A |
|
VO252 |
27/28A & 32A |
|
VO260 |
21/22A |
|
VO416 |
10A |
|
VO565 |
29A |
|
(312637) |
EE401181 |
Bearing,
Ball, Replaceable for 05C/050C Deflection Device and all Epic Thread
Guide Rollers |
VO011 |
04A & 21A |
|
VO012 |
08D |
|
VO084 |
17C & 34C |
|
VO191 |
10D, 11F, 20B, 21B |
|
VO192 |
13/14B |
|
VO194 |
24A & 26B |
|
VO252 |
27/28B & 32B |
|
VO260 |
21/22B |
|
VO416 |
10B |
|
VO433 |
24 |
|
VO501 |
13A |
|
VO565 |
29C |
|
312645 |
EE480466 |
Thread
Guide Roller Assembly with 4mm Stud and Dual Groove Spiral Cap, 06-09,
BA4 |
VO191 |
10B & 11C |
|
VO192 |
13 & 14 |
|
(312645) |
EE480466-1 |
Roller,
Thread Guide Assembly with 4mm Stud, without Spiral Cap, Epic Version
(Replaceable Bearing), 06-09, BA4 |
VO191 |
10C & 11D |
|
VO192 |
13A & 14A |
|
313056 |
EE401610 |
Coupling,
Aluminum, 25mm, with Screw, 30mm Wide |
VO013 |
03A |
|
VO016 |
02 |
|
VO192 |
23 |
|
VO193 |
23 |
|
VO197 |
08 |
|
VO252 |
12 |
|
VO253 |
38 |
|
VO260 |
08A |
|
VO315 |
09A |
|
VO318 |
03 |
|
VO417 |
05A, 32, 34 |
|
VO418 |
15 |
|
VO422 |
04 |
|
VO464 |
11 |
|
VO566 |
21 & 22 |
|
VO568 |
04 |
|
VO594 |
10 |
|
313056W |
EE481243 |
Coupling,
40mm Wide, Aluminum, for Pre-Take-Up & Friction Roll Shafts, 05-09,
BA3-BA6 |
VO013 |
03B |
|
VO016 |
02A |
|
VO192 |
23B |
|
VO193 |
23B |
|
VO197 |
08B |
|
VO253 |
38A |
|
VO3.5.1 |
10B |
|
VO315 |
09B |
|
VO318 |
03A |
|
VO4.3.1 |
01 |
|
VO417 |
05B |
|
VO418 |
15B |
|
VO422 |
04B & 09B |
|
VO464 |
11A & 11B |
|
VO566 |
22A |
|
VO568 |
04A |
|
VO594 |
10A |
|
VO624 |
05A |
|
VO648 |
02A |
|
VO649 |
01A |
|
313619 |
EE401983-8 |
Capsule,
Mushroom #8, Round Profile, Air,Chrome, BA3/BA4 |
VO008 |
15 |
|
VO067 |
25H |
|
VO177 |
07H |
|
VO209 |
07H |
|
VO350 |
01H |
|
VO357 |
15H |
|
VO360 |
16H |
|
(313619) |
EE401983-9 |
Capsule,
Mushroom #9, Round Profile, Air,Chrome, BA3/BA4 |
VO008 |
15 |
|
VO067 |
25I |
|
VO177 |
07I |
|
VO209 |
07I |
|
VO350 |
01I |
|
VO357 |
01I |
|
VO360 |
06I |
|
314909 |
EE401620 |
Disc,
Chrome Tension, for Cabler Cap and Brake, 05/05C |
VO007 |
13 |
|
VO007A |
13 |
|
VO012 |
42 |
|
VO558 |
10 |
|
315341 315358 |
EE401567 |

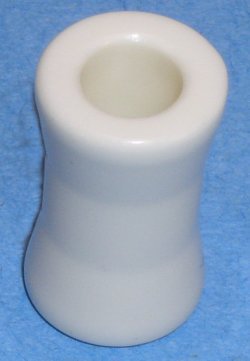

Ceramic
Hourglass Thread Guide Roller for 05 Spindle, BA3-BA5 |
VO065 |
40 |
|
VO555 |
27 |
|
VO660 |
36 |
|
315713 |
EE481423 |
Seal
Ring for Multi-Tension Device Cap, DT-2, 05-09, BA4/BA5 |
VO067 |
08 |
|
VO560 |
41 |
|
317099 |
EE480314 |
Screw,
Torx, 5 X 18.4 (fine pitch) |
VO174 |
04 |
|
VO2.1.1 |
07 |
|
VO301 |
02 |
|
VO355 |
06 |
|
VO401 |
02 |
|
317107 |
EE401564 |
Screw,
Torx, 5X21.4 (Fine Pitch) |
VO005 |
08 |
|
VO065 |
09 |
|
VO555 |
08 |
|
VO660 |
12 |
|
317842 |
EE401043 |
Ring,
Spiral for Friction Roll Stop, 05 BA3/BA4 & 06-09 BA1-BA4 |
VO017 |
05 |
|
VO5.7.2 |
09 |
|
VO504 |
25 |
|
318793 |
EE481433 |
Spring,
Torsion, for Latch of Creel, 05, BA3/BA4 |
VO074 |
27 |
|
318800 |
EE481434 |
Support
Arm, Long, 05, BA3/BA4 |
VO074 |
02 |
|
318801 |
EE434408 |
Circlip,
External, 10mm |
VO074 |
07 |
|
VO201- BA4 |
18 |
|
VO202- BA4 |
12 |
|
VO255 |
23 |
|
VO266 |
23 |
|
VO273 |
26 |
|
VO424 |
18 |
|
VO425 |
23 |
|
VO550 |
23 |
|
VO570 |
23 |
|
318803 |
EE401700 |
Creel
Pin, Brass, 8 X 55mm, 05, BA3/BA4 |
VO074 |
01 |
|
318808 |
EE401720 |
Creel
Pin, Brass, 10 X 78mm, 05, BA3/BA4 |
VO074 |
03 |
|
320237 |
EE401640 |
Pad,
Foam, Lined, Gray, for 05 Pot and 05C/050C Creel, 3.375" ID X
11.5" OD X 1" Thick (85mm X 292mm X25mm) |
VO006 |
02 |
|
VO021 |
12 |
|
VO057 |
11 |
|
VO066 |
25 |
|
VO079 |
13 |
|
VO572 |
36 |
|
(320237) |
EE401642-1 |
Pad,
Foam, Not Lined, Gray, High Density, for 05 Pot and 05C/050C Creel,
3.375"X11.625"X1" (85mm ID X 295mm OD X 25mm Thick) |
VO006 |
02 |
|
VO021 |
12B |
|
VO066 |
25 |
|
VO079 |
13B |
|
VO572 |
36 |
|
EE401642-2 |
Pad,
Foam, Not Lined, Gray, High Density, for 05 Pot and 05C/050C Creel,
3.375" X 11.625" X .625" (85mm ID X 295mm OD X 16mm Thick) |
VO006 |
02 |
|
EE401644 |
Pad,
Lined, Foam, Gray for 05 Pot and 05C/050C Creel, 3.375" X
11.875" X 1" (300mm X 85mm X 25mm) |
VO006 |
02 |
|
VO021 |
12C |
|
VO066 |
25 |
|
VO079 |
13C |
|
VO572 |
36 |
|
320390 |
EE431209 |
Screw,
Hex Socket Flat Point Set 6X10 |
VO011 |
15 |
|
VO1.2.1 |
04A & 18 |
|
VO257 |
02 & 10 |
|
VO4.4.1 |
06 |
|
VO430 |
13 |
|
VO432 |
50 |
|
VO466 |
27 |
|
VO489 |
09 |
|
VO551 |
36 |
|
VO576 |
13 |
|
320419 |
EE401848 |
O-Ring
20X1 |
VO005 |
06 |
|
320671 |
EE301318 |
Collar,
Locking with Set Screw |
VO013 |
29 |
|
VO193 |
26 |
|
VO253 |
35 |
|
VO315 |
07 |
|
VO418 |
23 |
|
VO566 |
26 |
|
(321841) |
EE304710-2V |
Disc,
Creel, White Plastic, 1/4" Thick X 11" O.D. X 25/64 I.D. |
VO021 |
10A |
|
VO057 |
12A |
|
VO572 |
35A |
|
EE304710V |
Creel
Support Disc, Fiber, E&C |
VO021 |
10 |
|
VO057 |
12 |
|
VO572 |
35 |
|
323091 |
EE401730 |
Creel
Pin, Brass, 10x110mm, 05, BA3/BA4 |
VO074 |
17 |
|
323093 |
EE401700 |
Creel
Pin, Brass, 8 X 55mm, 05, BA3/BA4 |
01 |
|
323094 |
EE401710 |
Creel
Pin, Brass, 8 X 75mm,05,BA3/BA4 |
15 |
|
323269 |
EE401648 |
Bolt
for Spool Holder, 05C/050C, BA3-BA5 |
VO021 |
07 |
|
VO057 |
06 |
|
VO079 |
06 |
|
VO572 |
29 |
|
323271 |
EE401650 |
Spring,
Plastic Holding, for Spool Holder, 05C/050C, BA3-BA5 |
VO021 |
05 |
|
VO057 |
04 |
|
VO079 |
04 |
|
VO572 |
27 |
|
323272 |
EE401651 |
Ring,
Intermediate for Spool Holder, 05C/050C, BA3-BA5 |
VO021 |
06 |
|
VO057 |
05 |
|
VO079 |
05 |
|
VO572 |
28 |
|
323273 |
EE401652 |
Spring,
Pressure, for Spool Holder, 05C/050C, BA3-BA5 |
VO021 |
08 |
|
VO057 |
07 |
|
VO079 |
07 |
|
VO572 |
30 |
|
326736 |
EE480147 |
Flyer
Wire Only, Chrome, S-Twist, 07, BA1-BA6 |
VO184 |
23A |
|
VO2.4.1 |
26A |
|
VO209 |
13A |
|
VO304 |
19A |
|
VO341 |
25A |
|
VO404 |
21A |
|
327064 |
EE437561 |
Screw,
ISKT Button Head, 6X30 |
VO263 |
21A |
|
VO264 |
20A |
|
VO575 |
09 |
|
327478 |
EE480959 |
Grommet,
Sealing for 09-09ST Pot, BA3/BA4 |
VO356 |
30 |
|
VO359 |
12 |
|
VO403 |
20 |
|
327700 |
EE437554 |
Screw,
ISKT Button Head, 6X16 |
VO084 |
35 |
|
VO292 |
76 |
|
VO400 |
08 |
|
VO420 |
34 & 39 |
|
VO551 |
11 |
|
VO575 |
29 |
|
329805 |
EE480195 |
Brake
Shoe Assembly, 06-09, BA4 |
VO174 |
09 |
|
VO353 |
02 |
|
VO353A |
02 |
|
VO355 |
14 |
|
(329805) |
EE480500 |
Spring
for Brake Shoe, 06-09, BA4 |
VO353 |
02B |
|
VO355 |
14A |
|
EE480501 |
Clip,
Wear, for Brake Shoe, 06-09, BA4 |
VO353 |
02A |
|
VO355 |
14B |
|
330415 |
EE481565 |
Clamp,
Thread Guide, Metal, 06-09, BA4-BA6 |
VO254 |
34 |
|
VO421 |
13 |
|
VO649 |
35 |
|
332148 |
EE437552 |
Screw,
ISKT Button Head, 6X10 |
VO405 |
03 |
|
VO406 |
01 |
|
VO415 |
33 |
|
VO416 |
03 & 05 |
|
VO417 |
13 |
|
VO418 |
35 |
|
VO421 |
20 |
|
VO423 |
03 |
|
VO430 |
08 |
|
VO432 |
31 |
|
VO433 |
06 |
|
VO436 |
27 |
|
VO466 |
21 |
|
VO489 |
14 |
|
VO565 |
25, 48, 50, 57 |
|
VO566 |
46 |
|
VO567 |
21 |
|
VO569 |
07 & 14 |
|
332171 |
EE481161 |
Latch
for Overhead Creel, 05C/050C, BA4 |
VO074 |
08 |
|
333450 |
EE481573 |
Magnet,
Pot, 050/050C, BA4, DT-2 |
VO066 |
06 & 07 |
|
334342) |
EE402180 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Aluminum Bottom |
VO066 |
01G |
|
(334342) |
EE440372 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Stainless Steel
Bottom |
VO066 |
01F |
|
(334359) |
EE402180 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Aluminum Bottom |
VO066 |
01G |
|
EE440372 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Stainless Steel
Bottom |
01F |
|
(334367) |
EE402180 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Aluminum Bottom |
VO066 |
01G |
|
EE440372 |
Pot,
Customer's, Repaired: Volkmann 05/05C/050/050C BA4, Stainless Steel
Bottom |
01F |
|
(334698) |
EE401530 |
Oil
Pump Head Only with Gears & without Sprocket, 05-09, BA1-BA6 |
VO043 |
08A |
|
VO126 |
01 |
|
VO127 |
01 |
|
VO226 |
17A |
|
VO465 |
15 & 15A |
|
VO488 |
17A |
|
VO595 |
20 |
|
334714 |
EE440010 |
Spindle
Assembly Complete with Stainless Twist Plate, 05, BA4 |
VO065 |
01 |
|
(334714) |
EE401865 |
Rebuild
05, BA4 Spindle Complete (Upper & Lower) |
VO005 |
02B |
|
VO065 |
01A |
|
EE401865-1 |
Rebuild
05, BA4 Spindle Complete (Upper & Lower) (For Exchange) |
VO005 |
02C |
|
VO065 |
01C |
|
EE401865-3 |
Rebuild
05, BA3 Spindle Complete (Upper & Lower) |
VO005 |
02D |
|
VO065 |
01B |
|
EE440385 |
Spindle,
Upper, Complete, 05 BA4, New with Stainless Steel Disc, Balanced |
VO065 |
01D |
|
335935 |
EE401875-4 |
Traverse
Thread Guide Assembly Complete, 1.4mm Ceramic, Heavy Duty, 05-06, BA3-BA5
(Pos 246) |
VO015 |
06C |
|
VO071 |
02C |
|
VO317 |
21B |
|
VO567 |
32B |
|
(336651) (336669) |
EE402021 |
Rebuild
Upper Spindle, 090ST Upgrade, BA3 & 090/090S/090F BA4 |
VO174 |
01I |
|
VO355 |
01 |
|
336818 |
EE481564 |
Thread
Guide with Solid Bracket, 2.0mm, 06-09, BA4-BA6 |
VO254 |
36A |
|
VO421 |
14 |
|
VO649 |
34 |
|
336826 |
EE481572 |
Thread
Guide with Solid Bracket, 3.0mm, 06-09, BA4-BA6 |
VO254 |
36B |
|
VO421 |
14B |
|
VO649 |
34A |
|
337386 |
EE481304 |
Friction
Roller Assembly, 10", for Clutch with 70mm Gray Cot, 05/06, BA4 |
VO087 |
01 |
|
VO281 |
01D |
|
338483 |
EE401875-2 |
Traverse
Thread Guide Assembly Complete, 2.0mm Ceramic, Heavy Duty, 05-06, BA3-BA5
(Pos 247) |
VO015 |
06A |
|
VO071 |
02A |
|
VO317 |
21A |
|
VO567 |
32 |
|
338491 |
EE401878-2 |
Ceramic
Guide Tip, 2.0mm with Bracket for Traverse Thread Guide, Heavy Duty,
05-06, BA3-BA5 (Pos 247) |
VO015 |
02A |
|
VO071 |
10A |
|
VO317 |
23 |
|
VO567 |
16 |
|
(341370) |
EE401569 |
Tension
Device Complete for Cabler Cap with Chrome Discs, Aluminum Bracket,
05C/050C |
VO007A |
02 |
|
VO558 |
18 |
|
EE401569-1 |
Tension
Device Complete for Cabler Cap with Ceramic Discs, Aluminum Bracket,
05C/050C |
VO007A |
02A |
|
VO558 |
18A |
|
EE402224 |
UniTensor
Repair (Flat rate of $2.00 per assembly plus selling price of each
component used) |
VO007 |
02F |
|
VO558 |
18F |
|
EE440095 |
UniTensor™,
Volkmann Mount, Chrome Discs (Aluminum Bracket) |
VO007 |
02 |
|
VO558 |
18B |
|
EE440095-1 |
UniTensor™,
Volkmann Mount, Ceramic Discs (Aluminum Bracket) |
VO007 |
02A |
|
VO558 |
18C |
|
(341388) |
EE440230 |
Cabler
Cap, Stainless (Large Window) with Standard Tension Device (Chrome Discs) |
VO007 |
01 |
|
VO007A |
01 |
|
VO558 |
01 |
|
EE440230-1 |
Cabler
Cap, Stainless (Large Window)
with Standard Tension Device (Ceramic Discs) |
VO007 |
01 |
|
VO007A |
01A |
|
VO558 |
01A |
|
EE440231 |
Cabler
Cap, Stainless (Large Window)
with UniTensor (Chrome Discs) |
VO007 |
01 |
|
VO558 |
01B |
|
EE440231-1 |
Cabler
Cap Assembly, Stainless, (Large Window) with UniTensior (Ceramic Discs) |
VO007 |
01 |
|
VO558 |
01C |
|
EE440231-2 |
Cabler
Cap, Stainless (Large Window) with UniTensor (Ceramic Discs) and Extended
Bottom Eye |
VO007 |
01 |
|
VO558 |
01 |
|
342618 |
EE401655 |
Deflection
Device Assembly, Complete, Manual,
05C/050C, BA3-BA5 |
VO023 |
02 |
|
VO076 |
03 |
|
VO574 |
01 |
|
(342618) |
EE440000 |
Tube,
Manual Deflection, Epic with cuffs for 05C, BA3 |
VO023 |
26 |
|
EE480004 |
Friction
Cuff only for Epic Deflection Tube |
27 |
|
VO076 |
32 |
|
EE480005 |
Tube,
Manual Deflection, Epic, without cuffs for 05C, BA3 |
VO023 |
26A |
|
342626 |
EE402209 |
Deflection
Device Assembly, Complete, Air, 05C/050C, BA4/BA5 |
VO076 |
02 |
|
VO574 |
24 |
|
(342626) |
EE401927 |
Fitting,
Connector for Epic Air Deflection Tube |
VO076 |
33 |
|
EE440001 |
Tube,
Air Deflection, Epic, with cuffs for 05C, BA4 |
31 |
|
EE440002 |
Tube,
Air Deflection, Epic, without cuffs for 05C, BA4 |
|
EE440012 |
Tube,
Air Deflection, Epic with cuffs for 050C, BA4 |
|
EE480004 |
Friction
Cuff only for Epic Deflection Tube |
VO023 |
27 |
|
VO076 |
32 |
|
344242 |
EE480511 |
Cap,
Wide Opening Modular Adaptor, with Steel Entry Sleeve, 54mm |
VO053 |
11 |
|
VO068 |
03 |
|
VO248 |
02 |
|
VO408 |
02A |
|
VO561 |
07 |
|
(344358) |
EE480173 |
Adaptor,
Dry, 2X6", 07, BA1-BA4 |
VO207 |
01A |
|
VO248 |
01A |
|
344445 |
EE440296 |
Friction
Roller, 10", for Clutch, without 70mm Cot, 05, BA4 |
VO087 |
02A |
|
344465 |
EE440297 |
Friction
Roller, 10", for Clutch, with 70mm Gray Cot, 05, BA4 |
VO087 |
02B |
|
VO281 |
02D |
|
345363 |
EE481481 |
Pneumajet
Valve Assembly w/o Coupling Cap 05 BA3-BA5, 06-09 BA4-BA5 |
VO004 |
08 |
|
VO062 |
12 |
|
VO178 |
31 |
|
VO180 |
24 |
|
VO275 |
14 |
|
VO280 |
29 |
|
VO403 |
34 |
|
VO405 |
36 & 39 |
|
VO406 |
34 & 39 |
|
VO436 |
21 & 22 |
|
VO553 |
23 |
|
VO554 |
05 |
|
(345363) |
EE481481-1 |
Pneumajet
Valve Assembly with Coupling Cap 05 BA3-BA5, 06-09 BA4-BA5 |
VO004 |
08D |
|
VO062 |
12D |
|
VO178 |
31D |
|
VO180 |
24D |
|
VO275 |
14D |
|
VO280 |
29D |
|
VO403 |
34D |
|
VO405 |
36D & 39D |
|
VO406 |
34D & 39D |
|
VO436 |
21D & 22D |
|
VO553 |
23D |
|
VO554 |
05D |
|
EE481484 |
Cap,
for Pneumajet Valve Assembly, 05 BA3-BA5, 06-09 BA4-BA5 |
VO004 |
08C |
|
VO062 |
12C |
|
VO178 |
31C |
|
VO180 |
24C |
|
VO275 |
14C |
|
VO280 |
29C |
|
VO403 |
34B |
|
VO405 |
36C |
|
VO406 |
34C & 39B |
|
VO436 |
21C & 22C |
|
VO553 |
23C |
|
VO554 |
05C |
|
(347799) |
EE401080 |
Tape,
Spindle Drive, 15X1040mm, 05/05C/050/050C, BA3/BA4/BA5.02/BA5.03 |
VO001 |
24 |
|
VO551 |
18A |
|
348086 |
EE301322 |
Pre-Take-Up/Overfeed
Assembly, 24 Flute Ceramic
"Volkmann Type" without Locking Collar |
VO013 |
11 |
|
VO193 |
02F |
|
VO253 |
02F |
|
VO315 |
01F |
|
VO418 |
25F |
|
VO566 |
32F |
|
(348086) |
EE301304 |
Pre-Take-Up/Overfeed
Assembly, 24 Flute Ceramic
"Epic-Type" |
VO013 |
11 |
|
VO193 |
02C |
|
VO253 |
02H |
|
VO315 |
01H |
|
VO418 |
25H |
|
VO566 |
32H |
|
348102 |
EE301321 |
Pre-Take-Up/Overfeed
Assembly, 24 Flute Chrome "Volkmann Type" , without Locking
Collar |
VO013 |
11 |
|
VO193 |
02I |
|
VO253 |
02I |
|
VO315 |
01I |
|
VO418 |
25I |
|
VO566 |
32I |
|
(348102) |
EE301303 |
Pre-Take-Up/Overfeed
Assembly, 24 Flute Chrome
"Epic Type" |
VO013 |
11 |
|
VO193 |
02K |
|
VO253 |
02K |
|
VO315 |
01K |
|
VO418 |
25K |
|
VO566 |
32K |
|
348151 |
EE301330 |
Pre-Take-Up/Overfeed
Assembly, Male Half and Fixing Ring, Volkmann Type |
VO013 |
41 |
|
VO193 |
28 |
|
VO253 |
33A |
|
VO315 |
24 |
|
VO566 |
61 |
|
(348151) |
EE301329 |
Pre-Take-Up/Overfeed,
Male & Female Halves Only, Volkmann Type |
VO013 |
37 |
|
VO193 |
28C |
|
VO253 |
33B |
|
VO315 |
03A & 04A |
|
VO566 |
58 |
|
348169 |
EE301323 |
Pre-Take-Up/Overfeed
Assembly , 31 Flute Chrome "Volkmann-Type" without Locking
Collar |
VO013 |
11 |
|
VO193 |
02 |
|
VO253 |
02B |
|
VO418 |
25 |
|
VO566 |
32 |
|
(348169) |
EE301308 |
Pre-Take-Up/Overfeed
Assembly, 31 Flute Chrome "Epic Type" |
VO013 |
11 |
|
VO193 |
02A |
|
VO253 |
02L |
|
VO418 |
25B |
|
VO566 |
32B |
|
(348839) |
EE401530 |
Oil
Pump Head Only with Gears & without Sprocket, 05-09, BA1-BA6 |
VO043 |
08A |
|
VO126 |
01 |
|
VO127 |
01 |
|
VO226 |
17A |
|
VO465 |
15 & 15A |
|
VO488 |
17A |
|
VO595 |
20 |
|
(351254) |
EE481228 |
Apollo
Instant Lubritwist Assembly Complete with 10mm Entering Ring, 05-09,
BA1-BA4* |
VO052 |
03 |
|
VO184 |
01 |
|
VO341 |
01A |
|
EE481228-1 |
Apollo
Instant Lubritwist Assembly Complete with 14mm Entering Ring, 05-09,
BA1-BA4* |
VO052 |
03 |
|
VO184 |
01A |
|
VO341 |
01B |
|
EE481228-2 |
Apollo
Instant Lubritwist Assembly Complete with 16mm Entering Ring, 05-09,
BA1-BA4* |
VO052 |
03 |
|
VO184 |
01B |
|
VO341 |
01C |
| (352948) |
EE402289 |
Rebuild Spindle, 07 BA5.50, Minimum Repair |
VO401 |
01 |
| (352955) |
EE402289 |
Rebuild Spindle, 07 BA5.50, Minimum Repair |
VO401 |
01 |
|
353227 |
EE481271 |
Tube,
Traverse, AF, with Bushing, 2010 Gauge (Actual 1628mm), Pre-Drilled,
05-06, 08, 080, 09, BA5 |
VO421 |
02C |
|
VO567 |
07 |
|
354449 |
EE401872 |
Axle
and Whorl Assembly, 05, BA3/BA4 |
VO065 |
35 |
|
(354449) |
EE440005 |
Axle,
05/05C BA3/BA4 |
VO065 |
36 |
|
EE440006 |
Spindle
Whorl, 05, BA3/BA4 |
37 |
|
354662 |
EE431204 |
Screw,
Hex Socket Flat Point Set 5X6 |
VO186 |
21 |
|
VO194 |
05 |
|
VO254 |
35 |
|
VO263 |
04 |
|
VO264 |
10 |
|
VO415 |
17 & 25 |
|
VO420 |
30 |
|
VO421 |
12 |
|
358200 |
EE401537 |
Balancing
Ring, 05/05C, BA3/BA4 |
VO065 |
43 |
|
359125 |
EE402046 |
Bearing,
Flanged Conveyor Roll, UCFC206, 05-09, BA5 |
VO432 |
25 |
|
VO432 |
35 |
|
VO576 |
03 & 22 |
|
360099 |
EE401679 |
Ring,
White Spacer, 1", for Package Lift, 07-09, BA4 |
VO175 |
27A |
|
VO282 |
08B |
|
VO359 |
02B |
|
360206 |
EE431209 |
Screw,
Hex Socket Flat Point Set 6X10 |
VO011 |
15 |
|
VO1.2.1 |
04A & 18 |
|
VO257 |
02 & 10 |
|
VO4.4.1 |
06 |
|
VO430 |
13 |
|
VO432 |
50 |
|
VO466 |
27 |
|
VO489 |
09 |
|
VO551 |
36 |
|
VO576 |
13 |
|
360453 |
EE433502 |
Nut,
Nylon Insert Lock, 5mm |
VO007A |
21 |
|
VO013 |
22 |
|
VO171 |
33 |
|
VO174 |
13 |
|
VO2.1.1 |
17 |
|
VO2.2.1 |
09 |
|
VO260 |
26 |
|
VO272 |
12 |
|
VO282 |
12 |
|
VO302 |
07 |
|
VO355 |
18 |
|
VO501 |
33 |
|
VO558 |
14 |
|
VO559 |
18 |
|
VO566 |
37 |
|
VO572 |
13A |
|
VO599 |
19 |
|
360982 |
EE440295 |
Friction
Roller, 10", for Clutch, without Cover Groove, Matte, 05, BA4 |
VO087 |
02 |
|
VO281 |
02F |
|
360990 |
EE481306 |
Friction
Roller Assembly, 10", for Clutch without Cot Groove, Matte, 05/06,
BA4 |
VO087 |
01B |
|
VO281 |
01C |
|
361626 |
EE437557 |
Screw,
ISKT Button Head, 8X20 |
VO400 |
15 |
|
VO401 |
09A |
|
VO414 |
08 |
|
VO427 |
10 |
|
VO428 |
02 |
|
VO466 |
04 |
|
VO472 |
37 |
|
VO489 |
02 |
|
VO496 |
02 |
|
VO498 |
16 |
|
VO551 |
01 & 08A |
|
VO555 |
19A |
|
VO564 |
08 |
|
VO570 |
29 |
|
VO596 |
07 & 36 |
|
VO597 |
10 |
|
VO620 |
04 |
|
362236 |
EE431702 |
Washer,
Regular Lock, A, 12mm |
VO025 |
11 |
|
VO043 |
03 |
|
VO056 |
09 |
|
VO1.1.1 |
11 |
|
VO1.21.1 |
07 |
|
VO123- BA4 |
15 |
|
VO126 |
11 |
|
VO127 |
11 |
|
VO153- BA4 |
14 |
|
VO162- BA4 |
33 |
|
VO173 |
15 |
|
VO246 |
21 & 30 |
|
VO468 |
42 |
|
VO491 |
38 |
|
VO579 |
15 |
|
VO597 |
13 |
|
VO598 |
15 |
|
(363861) |
EE401661 |
Disc,
Ceramic, for Cabler Cap and Brake |
VO007 |
13 |
|
VO007A |
13 |
|
VO558 |
10A |
|
366898 |
EE401859 |
Spring,
Tension, (Black) |
VO007 |
12 |
|
VO007A |
12 |
|
VO558 |
07 |
|
366906 |
EE401860 |
Spring,
Tension , (Silver) |
VO007 |
15 |
|
VO007A |
15 |
|
VO558 |
12 |
|
369967 |
EE481552 |
Locking Arm Complete, DT-3,
05, BA4/BA5 |
VO078 |
24 |
|
VO424 |
28 |
|
VO570 |
26 |
|
370692 |
EE480465 |
Thread
Guide Roller Assembly with 6mm Stud with Dual Groove Spiral Cap, 05-09,
BA4-BA5 |
VO011 |
23 |
|
VO012 |
08A |
|
VO084 |
17 & 34 |
|
VO191 |
10, 11, 20, 21 |
|
VO192 |
13/14 |
|
VO194 |
24 & 26 |
|
VO252 |
27/28 & 32 |
|
VO260 |
21/22 |
|
VO264 |
12 |
|
VO416 |
06A |
|
VO565 |
29 |
VO611 |
08 |
|
(370692) |
EE401181 |
Bearing,
Ball, Replaceable for 05C/050C Deflection Device and all Epic Thread
Guide Rollers |
VO011 |
04A & 21A |
|
VO012 |
08D |
|
VO084 |
17C & 34C |
|
VO191 |
10D, 11F, 20B, 21B |
|
VO192 |
13/14B |
|
VO194 |
24A & 26B |
|
VO252 |
27/28B & 32B |
|
VO260 |
21/22B |
|
VO416 |
10B |
|
VO433 |
24 |
|
VO501 |
13A |
|
VO565 |
29C |
|
EE480465-1 |
Thread
Guide Roller Assembly with 6mm Stud without Dual Groove Spiral Cap,
05-09, BA4-BA5 |
VO011 |
21 |
|
VO012 |
08C |
|
VO084 |
17A & 34A |
|
VO191 |
10A, 11B, 20A, 21A |
|
VO192 |
13/14A |
|
VO194 |
26A |
|
VO252 |
27/28A & 32A |
|
VO260 |
21/22A |
|
VO416 |
10A |
|
VO565 |
29A |
|
370700 |
EE480466 |
Thread
Guide Roller Assembly with 4mm Stud and Dual Groove Spiral Cap, 06-09,
BA4 |
VO191 |
10B & 11C |
|
VO192 |
13 & 14 |
|
(370700) |
EE480466-1 |
Roller,
Thread Guide Assembly with 4mm Stud, without Spiral Cap, Epic Version
(Replaceable Bearing), 06-09, BA4 |
VO191 |
10C & 11D |
|
VO192 |
13A & 14A |
|
(370718) |
EE401181 |
Bearing,
Ball, Replaceable for 05C/050C Deflection Device and all Epic Thread
Guide Rollers |
VO011 |
04A & 21A |
|
VO012 |
08D |
|
VO084 |
17C & 34C |
|
VO191 |
10D, 11F, 20B, 21B |
|
VO192 |
13/14B |
|
VO194 |
24A & 26B |
|
VO252 |
27/28B & 32B |
|
VO260 |
21/22B |
|
VO416 |
10B |
|
VO433 |
24 |
|
VO501 |
13A |
|
VO565 |
29C |
|
371674 |
EE481583 |
Disc,
Ceramic Tension, 05C/050C, BA4/BA5 |
VO085 |
24 |
|
VO559 |
23 |
|
VO617 |
19 |
|
371682 |
EE481582 |
Tube,
Ceramic, 05C/050C, BA4/BA5 |
VO085 |
31 |
|
VO559 |
24 |
|
VO617 |
20 |
|
372383 |
EE402211 |
Elbow
Half, Deflection Device, Air, with Air Channel, 05C/050C, BA4/BA5 |
VO076 |
11 |
|
VO574 |
14 |
|
372391 |
EE401665 |
Elbow
Half, Deflection Device, 05C/050C, BA3-BA5, Manual |
VO023 |
25 |
|
VO076 |
19 |
|
VO574 |
04 |
|
372409 |
EE402210 |
Elbow
Half, Deflection Device, Air, without Air Channel, 05C/050C, BA4/BA5 |
VO076 |
12 |
|
VO574 |
12 |
|
(372441) |
EE304580V |
Eyelet,
Small Ceramic |
VO007 |
24 & 36 |
|
VO007A |
24 |
|
VO558 |
09 |
|
EE401200 |
Ceramic
Eye, Square, for Cabler Cap Tension Device,10mm |
VO007A |
04 |
|
VO558 |
06 |
|
VO559 |
02 |
|
373332 |
EE480511 |
Cap,
Wide Opening Modular Adaptor, with Steel Entry Sleeve, 54mm |
VO053 |
11 |
|
VO068 |
03 |
|
VO248 |
02 |
|
VO408 |
02A |
|
VO561 |
07 |
|
(374280) |
EE437550 |
Screw,
ISKT Button Head, 5X10 |
VO402 |
26A & 27A |
|
VO405 |
12, 29, 32, 42 |
|
VO406 |
11, 14, 19 |
|
VO416 |
09 |
|
VO436 |
03 & 17 |
|
VO550 |
05 & 28 |
|
VO551 |
29 |
|
VO553 |
02, 07, 08, 18 |
|
VO554 |
03, 09, 18, 26 |
|
VO557 |
17 |
|
VO596 |
22 |
|
374769 |
EE481356 |
Disc,
Centering, 28.0mm, Shallow Back, BA4/BA5 |
VO203 |
05 |
|
VO256 |
15 |
|
VO426 |
15 |
|
VO427 |
01 |
|
375782 |
EE481422 |
Cap,
for Multi-Tension Device, DT-2, 05-09, BA4 |
VO067 |
07 |
|
376335 |
EE437553 |
Screw,
ISKT Button Head, 6X14 |
VO022 |
29 |
|
VO266 |
10A |
|
VO414 |
29 |
|
VO418 |
11 & 42 |
|
VO420 |
01, 07, 46 |
|
VO424 |
13A |
|
VO425 |
12A |
|
VO466 |
16 |
|
VO489 |
20 |
|
VO564 |
38A |
|
VO566 |
18 & 40 |
|
VO570 |
11 |
|
VO575 |
54 |
|
376343 |
EE437555 |
Screw,
ISKT Button Head, 6X20 |
VO201- BA4 |
35A |
|
VO202- BA4 |
25A |
|
VO255 |
16A |
|
VO266 |
10 |
|
VO273 |
12 |
|
VO275 |
35 |
|
VO280 |
30A |
|
VO414 |
26 |
|
VO417 |
33 |
|
VO418 |
10 |
|
VO424 |
13 |
|
VO425 |
12 |
|
VO550 |
12 |
|
VO564 |
29 & 44 |
|
VO566 |
17 |
|
(389429) |
EE401080 |
Tape,
Spindle Drive, 15X1040mm, 05/05C/050/050C, BA3/BA4/BA5.02/BA5.03 |
VO001 |
24 |
|
VO551 |
18A |
|
393734 |
EE402024 |
Pot
Bearing Housing Complete, 09/090S BA4 and Upgraded 09ST, BA3 |
VO356 |
11 |
|
VO359 |
09 |
|
396960 |
EE402272-1 |
Grease, Kluber NBU 15, 400 Gram
Cartridge |
VO301 |
11 |
|
VO508 |
18 |
|
VO605 |
15 |
|
VO656 |
15 |
|
398636 |
EE481594 |
Slide,
for Pre-Take-Up Shaft & Friction Roll Shaft, 05 BA5.01 & 06-09
BA5 |
VO418 |
06 |
|
VO566 |
01 |
|
399725 |
EE480074 |
Lining,
Spindle Brake, Flat, 06-09, BA1-BA3 Flexible |
VO2.1.1 |
03 |
|
VO2.2.1 |
12 |
|
VO301 |
05 |
|
(399725) |
EE480074-1 |
Lining,
Spindle Brake, Pre-Molded, 06-08, BA1-BA3 |
VO2.1.1 |
03A |
|
VO2.2.1 |
12A |
|
VO301 |
05A |
|
|
|
