OEM Part Number 547515H through 920252000
Epic Offers the following items for ICBT and/or Verdol machines:
OEM NO.		EPIC PART#		DESCRIPTION		ASSY		POSITION
	547515H		EE309041		Screw for Eyelet Holder		VE20		32
	549509		EE303790		Lock Nut, Nylon Insert, 6mm		VE09		11
	549509A		EE333350		Nut, Hex, Zinc Plated, 6mm		VE22		07
	555002A		EE303800		Washer, for Cam and Handle		VE01A		40
	555024A		EE431602V		Washer, Regular Flat, 8mm		VE09		13
	(555024A)		A-18356		Washer, Regular Flat 3/8", Plated		VE09		13
							VE14		38
							VE15		17
							VE16		14
							VE23		05
	555036A		EE303820		Washer, Regular Flat, 4mm		VE01		32
	555047A		EE303840		Washer, External Serrated Lock, 4mm		VE01		31
	555048A		EE303860		Washer, External Serrated Lock, 5mm (Unplated)		VE01		74
									20
							VE01A		55
							VE02		21
							VE10		14
							VE18		35
							VE19		43
	555062A		EE432502V		Lockwasher, Split, 6mm		VE10		19
	555062S		EE332502		Lockwasher, Split, 6mm		VE22		03
	558002A		EE303880		Ring, External Retaining, (10E or C1.010)		VE01		70
							VE01A		50
							VE18		41
							VE19		42
	558005A		EE303900		Ring, External, Retaining, (15E or C1.015)		VE01		57
							VE01A		36
							VE18		37
	558006A		EE304040		Ring, External Retaining, 16mm (16E or C1.016)		VE01		67
							VE01A		45
							VE02		15
									06
							VE18		22
							VE19		39
	558026A		EE334305		Ring, Internal Retaining, 32mm		VE05A		12
							VE27		23
	558027A		EE304020		Ring, R Whorl Retaining (35I or C2.035)		VE01		53
							VE01A		34
							VE18		10
	558044A		EE304045		Ring, Internal Retaining (30I)		VE01		04
							VE01A		03
	558063A		EE304060		Ring, Cylinder Retaining (I 16K)		VE01		35
									43
							VE01A		17
	558082A		EE434228V		Ring, External Retaining, 42X1.75		VE18		30
							VE19		24
							VE20		07
							VE27		15
	559504A		EE304080		Pin, Cylinder Roll, 3X10mm		VE01		29
							VE01A		54
	561031A		EE309042		Rivet, Aluminum, 2.5 X 8mm		VE27		02
	562500A		EE438000V		Screw, Slotted Pan Head Tapping, 2.9x9.5		VE19		07
	569009S		EE304100		Bearing, U Spindle Base, 6301		VE02		18
	569013S		EE304120		Bearing, Upper Oblique, 16004C3		VE01		16
							VE01A		13
	569016S		EE304140		Bearing, Lower Oblique, 6005C3		VE01		18
							VE01A		26
	(569016S)		EE304144		Bearing, Lower Oblique, 6005-2RSC3		VE01A		26A
	(569027SS)		EE304202		Bearing, Top, 5200, Double Seal		VE01		09
							VE01A		08A
			EE304202-1		Bearing, Top, Steel Cage, 5200, without seals (Note: Do not use EE302120 Washer. And, Use EE302081 modified washer in place of EE302080 washer).		VE01		08
							VE01A		08
	569028R		EE304222		Bearing, R Spindle Housing, Double Seal, 3202.2RS		VE01A		31A
							VE18		08
	569028S		EE304220		Bearing, R Spindle Housing, 3202 with Steel Cage		VE01		49
							VE01A		31
	569061B		EE304242		Bearing, R Whorl, NTN		VE01		54
							VE01A		35
							VE18		49
	569063S		EE304260		Bearing, R& RM Spindle Base, 6200 (Open)		VE01		71
							VE01A		52
							VE18		19
	(569063S)		EE304262		Bearing, R & RM Spindle Base, 6200-2RS, (Double Seal)		VE01A		52A
							VE18		19A
			EE304262-1		Bearing, R & RM Spindle Base, 6200-2RS, (Double Seal), SKF		VE01A		52B
							VE18		19B
	569081D		EE304280		Bearing, Ball, 6202ZZ		VE05A		11
							VE18		31
							VE19		23
							VE20		16A
							VE27		13
	569082D		EE304300		Bearing, N Spindle, 450, 6201ZC3		VE18		28
							VE19		20
							VE27		06
	(569082D)		EE304300-1		Bearing, Ball, with two metal shields, 62012ZC3HT51 SKF		VE05A		10
							VE18		28A
							VE19		20A
							VE20		16B
							VE27		06A
	569094D		EE309032		Bearing for Roller Assembly EE380020		VE22		06
	569103D		EE309046		Bearing, F44 Bottom Housing (6300)		VE19		51
	569116D 569160D		EE304245		Bearing, Whorl, for F44, 63203		VE19		46
	5700000		EE304400		Pulley,Tape Tension (70mm) for Model 400 & 500		VE17		03B
	574061A 574093A		EE304320		Tape, Spindle Drive, .75X112" (19mmX2845mm)		VE17		01
	574120B 574128B		EE304340		Tape, Spindle Drive, .63 X 40.5" (16mmX1030mm), 450 and ICBT		VE17		01B
	574137A		EE304344		Tape, Spindle Drive, .75X120" (20mmX3040mm)		VE17		01C
	576025A		EE304390		Pulley, Tape Tension (50mm) for Model 450		VE17		03
	576026S		EE304400		Pulley,Tape Tension (70mm) for Model 400 & 500		VE17		03B
	580000A		EE304420		Washer, Cylinder Wave		VE01		42
	580006A		EE380166		Washer, Wave, for RM, F44 & ICBT N Spindle		VE18		48
							VE19		22
							VE20		02
							VE27		10
	580050A		EE304450		Lock Nut, Nylon Insert Hex, 8mm		VE09		14
	580109A		EE304448		Washer, Spacer, for RM, F44 & ICBT N Spindle		VE18		24
							VE19		16
							VE20		22
							VE27		12
	581011C		EE304460		O-Ring, Top Bearing Lower		VE01		12
							VE01A		09
	581012C		EE304480		O-Ring, R Base		VE01		72
							VE01A		51
							VE18		18
	581013B		EE304500		O-Ring, Top Bearing Upper		VE01		10
							VE01A		07
							VE05A		09
							VE18		23
							VE19		15
							VE20		21
	581021C		EE304520-1		O-Ring, Cylinder for EE302780 Nylon Cylinder Plug		VE01		38
							VE01A		18
	(581021C)		EE309044		O-Ring 9.5 X 1.5mm		VE01		38A
							VE18		47
							VE19		31
							VE20		29
	581057A		EE309090		Fitting, Grease, for Verdol Spindle Housing and Base Cap		VE01		79
									60
							VE01A		53
									NS
									29
							VE18		07
							VE19		09
	(581057A)		EE304535		Fitting, Grease, for R Spindle Base		VE01		60
									79
							VE01A		29
									53
	581158C		EE304540		O-Ring for Spindle Housing		VE01		50
							VE01A		30
							VE18		09
							VE27		05
	581188C		EE304530		O-Ring 35 X 1.6		VE01		51
							VE02A		03
							VE05A		14
							VE19		45
	582189A		EE304390		Pulley, Tape Tension (50mm) for Model 450		VE17		03
	583008A		EE304550		Bushing, Take-Up Shaft		VE12		08
	(583058)		EE304760		Kit, Repair, E Creel Arm (A-18165) (2 Bushings in Steel Shell)		VE14		28C
	583058A		EE304560		Bushing, E Creel Arm		VE14		02
	588003A		EE304640		Ring, External Retaining		VE02		05
							VE20		23
	(588016)		EE380020		Roller, V-Groove Assembly		VE16		18
							VE22		01
	588017A		EE380149		Disc, Tension, for Verdol Cabler Cap Tension Device		VE08A		21
	588034A		EE304580		Eyelet, Small Ceramic		VE08		21
							VE08A		17
							VE14		42
							VE15		05
							VE16		03
									17
	588034C		EE304600		Eyelet, Large Ceramic		VE14		41
	6005C3		EE304140		Bearing, Lower Oblique, 6005C3		VE01		18
							VE01A		26
	62012ZC3HT51		EE304300-1		Bearing, Ball, with two metal shields, 62012ZC3HT51 SKF		VE05A		10
							VE18		28A
							VE19		20A
							VE20		16B
							VE27		06A
	6201ZC3		EE304300		Bearing, N Spindle, 450, 6201ZC3		VE18		28
							VE19		20
							VE27		06
	6301		EE304100		Bearing, U Spindle Base, 6301		VE02		18
	90201702		EE380148		Plate, Lower Magnet, with Magnets for Verdol RM, F44 Spindle		VE18		04
							VE19		04
							VE27		16
	920001800		EE380141		Magnet, for Verdol F44, RM and ICBT		VE18		03
							VE19		03
							VE20		04
									08B
	92000800		EE380106		Hub for N Spindle, 450		VE27		21
	92001100		EE380197		Housing, Lower, for "N" Spindle		VE27		07
	92001500		EE380164		Wire Keeper for RM, F44 & ICBT N Spindle		VE18		25
							VE19		17
							VE20		03
							VE27		01
	92001802		EE380141		Magnet, for Verdol F44, RM and ICBT		VE18		03
							VE19		03
							VE20		08B
									04
	(92002000)		EE380144		Plate, Upper Magnet, with Magnets for Verdol Spindles, RM, F44, & ICBT		VE18		02
							VE19		02
							VE20		08
	92002400		EE380172		Eyelet, Ceramic, for ICBT N Spindle		VE20		35
							VE27		20
	92002500		EE380173		Guide, Two Way, Channel for ICBT N Spindle		VE20		35A
							VE27		18
	92003000		EE309040		Eyelet, Ceramic,for Reserve Disc		VE18		45
							VE19		29
							VE20		30
	92003100 92003101		EE380059		Eyelet Retaining Piece for Hub/Reserve		VE18		46
							VE19		30
							VE20		31
	92003702 92003706		EE380170		Hub, Aluminum, for ICBT Spindle		VE20		27
	92003803		EE380168		Bearing Housing, Upper, for ICBT N Spindle (Shell Only- Old Style Housing - Does not include O-Ring - See EE340055 for Assembly)		VE20		01
	(92003803)		EE340055		Bearing Housing Assembly, Upper, ICBT N Spindle (with O-Ring, Wave Washer and Wire Keeper--See EE380168 for Shell Only)		VE20		01A
	92004602		EE380219		Sleeve for F44 Spindle Housing, New Style
	92004700		EE340069		Housing, New F44 Spindle, with Grease Fitting		VE19		32
	92005802 92005803		EE380171		Bearing Housing, Lower, for ICBT N Spindle		VE20		26
	92006602		EE380192		Brake Piston for ICBT N-Spindle		VE20		13
	92006800		EE309115		Eyelet Assembly		VE20		36
	(92009000)		EE309045		Spindle, Rebuild Customer F44		VE04		05
							VE19		01A
	92009400		EE380160		Axle, ICBT N Spindle		VE20		28
	92009500		EE380169		Whorl, ICBT N Spindle		VE20		25
	92009600		EE380163		Nut, ICBT Spindle		VE20		24

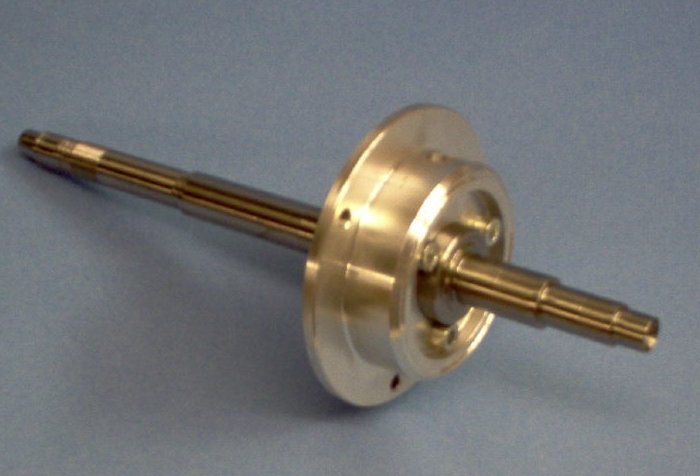

	92009700		EE380205		Axle and Box Assembly		VE20		33
	(9201220)		EE380144-1		Plate, Upper Magnet, with Magnet & Grommet for Verdol Spindles, RM, F44, & ICBT		VE18		02A
							VE19		02A
							VE20		08A
							VE27		14
	92012202		EE380144		Plate, Upper Magnet, with Magnets for Verdol Spindles, RM, F44, & ICBT		VE18		02
							VE19		02
							VE20		08
	92012401		EE380142		Grommet, Urethane, for Magnet Plate,Verdol RM, F44 & ICBT		VE18		02B
							VE19		02B
							VE20		08C
	92013401		EE340055		Bearing Housing Assembly, Upper, ICBT N Spindle (with O-Ring, Wave Washer and Wire Keeper--See EE380168 for Shell Only)		VE20		01A
	92014701		EE309095		Capsule, Tension, #2, Bulb Type for ICBT		VE07		21
	(92014701)		EE309095A		Capsule, Tension, #3, Bulb Type for ICBT		VE07		21
	92018201		EE380223		Magnet Plate Assembly for ICBT Pot
	920252000		EE340051		Disc and Reserve Assembly, Stainless, 280 X 200mm, ICBT		VE18		00
							VE20		00C
