OEM Part Number (92061802) through ZU4
Epic Offers the following items for ICBT and/or Verdol machines:
OEM NO.		EPIC PART#		DESCRIPTION		ASSY		POSITION
	(92061802)		EE380141		Magnet, for Verdol F44, RM and ICBT		VE18		03
							VE19		03
							VE20		04
									08B
	92500400		EE303612		Plate, Centering Guide Fitting		VE09		05
	92500500		EE303610		Stud, Short Guide Holder for EE303614		VE09		07
	92501003		EE302040		Spring, Spindle for R, U, & G Spindle (also used for Balloon Centering Guide)		VE01		68
							VE01A		46
							VE09		12
							VE18		16
							VE19		40
	(93214803)		EE380174		Shell Only, PTU/Over Feed, 14 Flute, Open-Type, Ceramic Coated, for ICBT		VE25		04
	93402900		EE305545		Friction Roller Assembly, ICBT and Verdol 450 with Full Length Cot		VE24		01
	(93402900)		EE309103		Strip Customer Verdol 450 or ICBT Friction Roll and install Full Length Cot EE305542 (Minimum 12 pieces)		VE24		01A
	93402902		EE305545		Friction Roller Assembly, ICBT and Verdol 450 with Full Length Cot		VE24		01
	(93402902)		EE305542		Cot, Gray, Full Length, 89.5 X 276 X 2mm for Verdol 450 and ICBT Friction Rolls		VE24		06
			EE305550		Install Epic Full Length Cot EE305542 on Customer's Cotless Roll, ICBT and Verdol 450 (Minimum 12 pieces)				02A
	935112 935283		EE304320		Tape, Spindle Drive, .75X112" (19mmX2845mm)		VE17		01
	94001300		EE380125		Bracket for Mounting Storage Tensor to ICBT Twister (without Ceramics)		VE21		06
	(94001300)		EE380126		Mounting Bracket with Ceramic Eyes		VE21		06A
	94403801		EE309070		Pin, Ceramic, Pink, 2.5mm Diameter		VE21		04
	(94403801)		EE309070-1		Pin, Ceramic, Pink, 3.5mm diameter		VE21		04A
	94700600 94700601		EE380022		Roller, V-Groove for Roller Assembly EE380020		VE22		05
	950612		EE303780		Screw, Hex Socket Cone Point Set, 6X12		VE01		33
							VE18		50
							VE19		18
	(962031800)		EE309127		Pot, Customer, Repaired, SS Bottom for 260mm Disc, ICBT, DT, CD
	(962036B00) (962037A01) (962042A01)		EE309129		Pot,Customer,Repaired, Stainless Steel Bottom, for 280mm Disc, ICBT, DT/CD

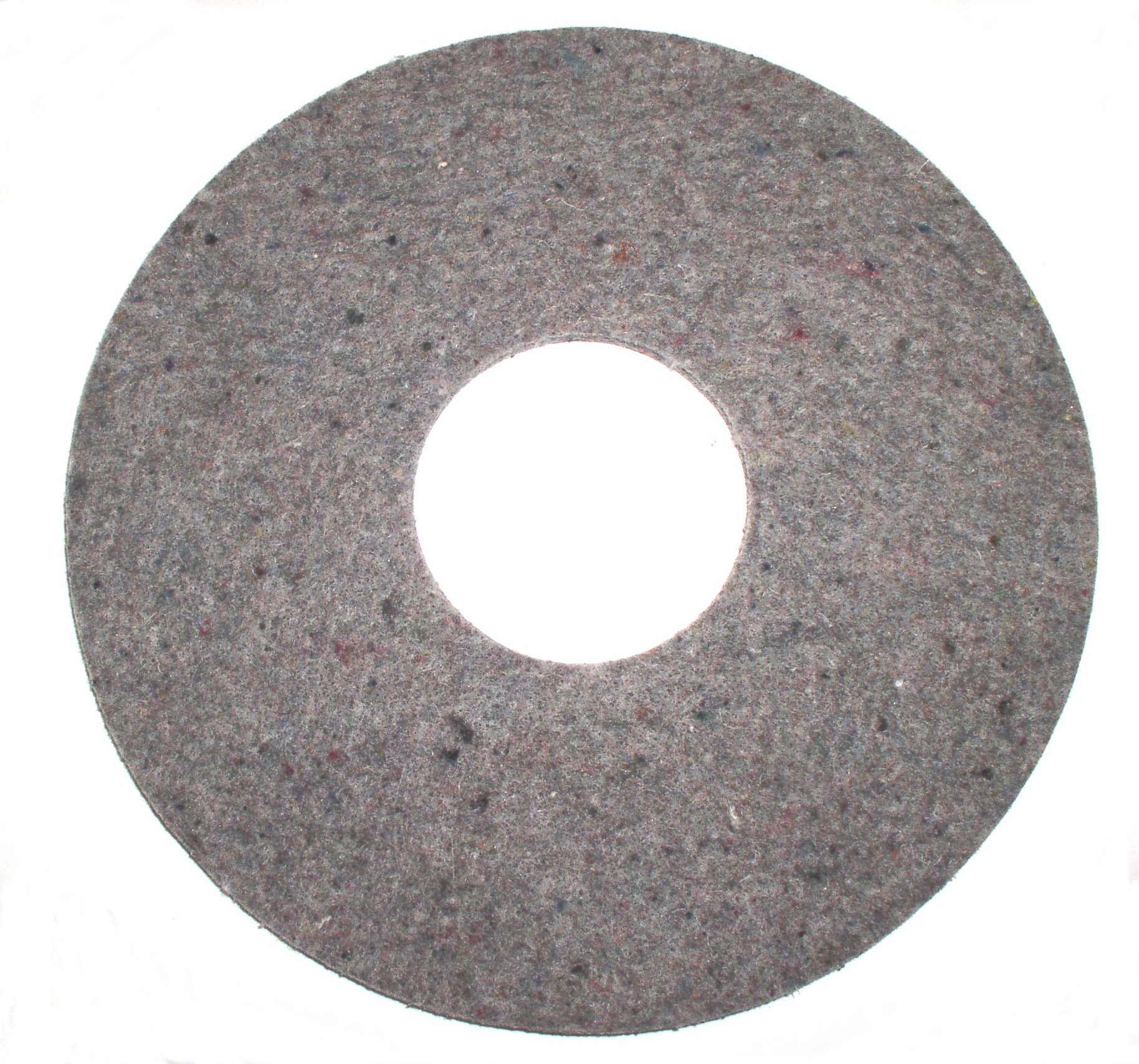

	96500200		EE302245		Pad, Felt, 3.5" X 10 3/4" X 5/16" Thick (90X273X8mm) (Gray)		VE14		33
							VE15		10

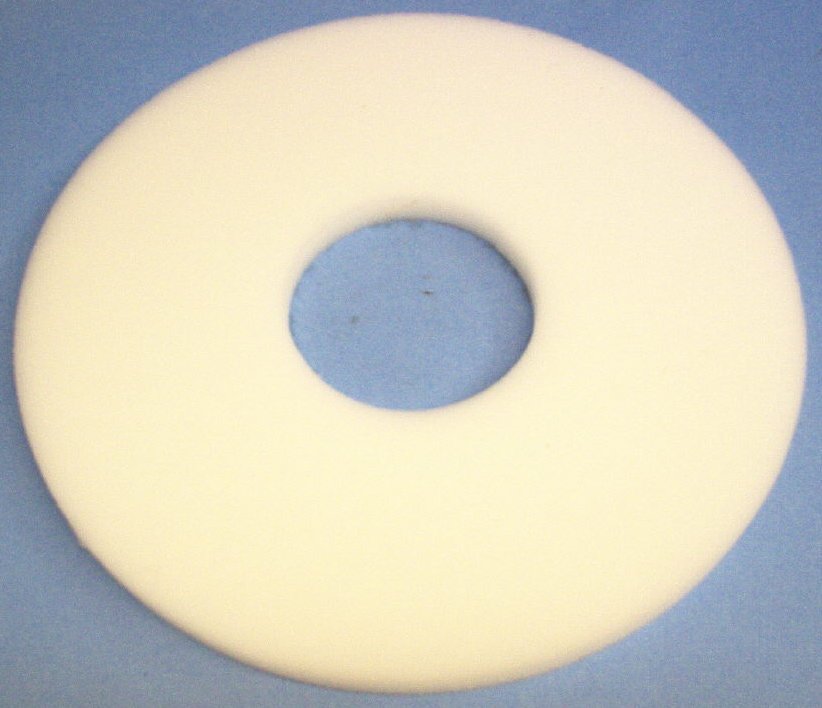

	96500300		EE302243		Pad, Foam, 3.5" X 11" X 5/8" (90mm ID X 280mm OD X 15mm Thick) (White)		VE14		33
							VE15		10
	96705000		EE309056		Eyelet, Ceramic Tube, Tan		VE27		03
	96900800		EE303502		Clip, Yarn, for Overfeed Cover		VE11		15
							VE16		05
	96901600		EE302060		Washer, Large Rubber for 400 Base Shell and ICBT Base Shell		VE05A		15
							VE07		11
	96901800		EE380021		Cap, End for Roller Assembly EE380020		VE22		04
	B92009700		EE380205		Axle and Box Assembly		VE20		33
	(BP12x20x2905)		EE304550		Bushing, Take-Up Shaft		VE12		08
	BSR51		EE304390		Pulley, Tape Tension (50mm) for Model 450		VE17		03
	BSR72		EE304400		Pulley,Tape Tension (70mm) for Model 400 & 500		VE17		03B
	C1010		EE303880		Ring, External Retaining, (10E or C1.010)		VE01		70
							VE01A		50
							VE18		41
							VE19		42
	C1012		EE304640		Ring, External Retaining		VE02		05
							VE20		23
	C1015		EE303900		Ring, External, Retaining, (15E or C1.015)		VE01		57
							VE01A		36
							VE18		37
	C1016		EE304040		Ring, External Retaining, 16mm (16E or C1.016)		VE01		67
							VE01A		45
							VE02		06
									15
							VE18		22
							VE19		39
	C2035		EE304020		Ring, R Whorl Retaining (35I or C2.035)		VE01		53
							VE01A		34
							VE18		10
	CHC5		EE303760-1		Screw, Socket Head Cap, 5X25		VE20		20
	DE4		EE303840		Washer, External Serrated Lock, 4mm		VE01		31
	DE5		EE303860		Washer, External Serrated Lock, 5mm (Unplated)		VE01		20
									74
							VE01A		55
							VE02		21
							VE10		14
							VE18		35
							VE19		43
	DF0213LLU/15A		EE304242		Bearing, R Whorl, NTN		VE01		54
							VE01A		35
							VE18		49
	HICM5X16		EE303760		Screw, Socket Head Cap, 5X16		VE01		75
							VE01A		56
							VE02		22
							VE18		43
							VE19		50
			EE401876V		Screw, Socket Head Cap 5X16		VE10		34
	HICM5X25		EE303760-1		Screw, Socket Head Cap, 5X25		VE20		20
	HICM6X20		EE303609		Screw, Socket Head Cap, 6X20		VE09		10
	HICM6X30		EE430227V		Screw, Socket Head Cap 6X30		VE10		20
	HICM6X75		EE330234		Screw, Socket Head Cap, 6 X 75		VE09		09
	HM4X12		EE303680		Screw, Upper Cylinder		VE01		30
	HM5X25		EE303720		Screw, Hex Head Cap, 5X25		VE01		21
	HM5X40		EE303720-1		Screw, Hex Head Cap, 5X40		VE18		36
							VE19		44
	HU6		EE433301V		Nut, Hex, 5mm		VE10		15
	HUM6		EE303790		Lock Nut, Nylon Insert, 6mm		VE09		11
			EE333350		Nut, Hex, Zinc Plated, 6mm		VE22		07
	LU5		EE303800		Washer, for Cam and Handle		VE01A		40
	R20PC851		EE304460		O-Ring, Top Bearing Lower		VE01		12
							VE01A		09
	R24PB701		EE304500		O-Ring, Top Bearing Upper		VE01		10
							VE01A		07
							VE05A		09
							VE18		23
							VE19		15
							VE20		21
	R26PC85LJF		EE304540		O-Ring for Spindle Housing		VE01		50
							VE01A		30
							VE18		09
							VE27		05
	R92006300		EE380161		Hub, Axle, ICBT N Spindle		VE20		34
	R92006800		EE309115		Eyelet Assembly		VE20		36
	(R92006800)		EE380172		Eyelet, Ceramic, for ICBT N Spindle		VE20		35
							VE27		20
			EE380173		Guide, Two Way, Channel for ICBT N Spindle		VE20		35A
							VE27		18
	(V962041.A01)		EE309129		Pot,Customer,Repaired, Stainless Steel Bottom, for 280mm Disc, ICBT, DT/CD
	(VD000062)		EE302120		Washer, Seal (Spacer)		VE01		06
							VE01A		05
	(VD000211)		EE304900		Housing, Spindle,Converted U to R or G to R (Epic property)		VE01		02A
			EE305556		Housing, Spindle, Converted U to R or G to R, Exchange
	(VD000330)		EE303082		Sleeve, R Cam (Hardened) With Wear Pad		VE01		65
							VE01A		43B
							VE18		14B
							VE19		36B
			EE303084		Sleeve, R Cam (Hardened) with Wear Pad and Hardened Screws		VE01A		43C
							VE18		14C
							VE19		36C
	(VD000463)		EE340065		Pot, Stainless (290H240) Repaired with Double Lock, Exchange		VE07		18A
	(VZ4435)		EE309127		Pot, Customer's, Repaired, SS Bottom for 260mm Disc, ICBT, DT/CD
	(VZ4883)		EE380114-2A		Dial Storage Tensor		VE21		05
	X021.084.047		EE303216		Deflector, Large, for RM, Original Type, 175mm Reserve Discs		VE18		06A
							VE19		06A
	X021.084.118		EE380148		Plate, Lower Magnet, with Magnets for Verdol RM, F44 Spindle		VE18		04
							VE19		04
							VE27		16
	X021.410.008		EE380020		Roller, V-Groove Assembly		VE16		18
							VE22		01
	(X021.442.001)		EE380114-2A		Dial Storage Tensor		VE21		05
	X021084003		EE340021		Disc and Reserve Assembly, Stainless, 260 X 160mm for RM, F44 and ICBT		VE18		44A
	X021084118		EE380144		Plate, Upper Magnet, with Magnets for Verdol Spindles, RM, F44, & ICBT		VE18		02
							VE19		02
							VE20		08
	X318580		EE304540		O-Ring for Spindle Housing		VE01		50
							VE01A		30
							VE18		09
							VE27		05
	(X92014701)		EE309095A		Capsule, Tension, #3, Bulb Type for ICBT		VE07		21
	X92501003		EE302040		Spring, Spindle for R, U, & G Spindle (also used for Balloon Centering Guide)		VE01		68
	X92501003		EE302040		Spring, Spindle for R, U, & G Spindle (also used for Balloon Centering Guide)		VE01A		46
							VE09		12
							VE18		16
							VE19		40
	ZU4		EE303820		Washer, Regular Flat, 4mm		VE01		32
