OEM Part Number 212478 through 53862600
Epic Offers the following items for ICBT and/or Verdol machines:
OEM NO.	EPIC PART#	DESCRIPTION	ASSY	POSITION
212478	EE303462-2	Cot, Take-Up Roll, 400, Off-White, 43mm	VE24	08A
212664	EE304448	Washer, Spacer, for RM, F44 & ICBT N Spindle	VE18	24
			VE19	16
			VE20	22
			VE27	12
212671	EE303880	Ring, External Retaining, (10E or C1.010)	VE01	70
			VE01A	50
			VE18	41
			VE19	42
212690A	EE380155	Adaptor, Take-Up Tube, Plastic (Replaces Verdol 208053)	VE12	01A
213245	EE303615	Balloon Centering Guide with Spacer and Pigtail	VE09	01
(213245)	EE304682	Spacer for Long Guide Holder Stud EE303615	VE09	08
213401A	EE380078	Adaptor, Package Centering, with Set Screw (EE331218)	VE12	06
(213401A)	EE303672	Tube Centering Piece, Plastic	VE12	05
213538A03	EE305547-1	Friction Roll without Cot, Verdol 400 and 500	VE24	05A
(214374)	EE303506	Guide Only, Traverse, (no holder)	VE03	01
(214444)	EE305547-1	Friction Roll without Cot, Verdol 400 and 500	VE24	05A
(214631)	EE380049	Stud, Brass Threaded for Cabler Cap Tension Device	VE08	04
			VE08A	20
214650	EE380051	Arbor Assembly for Verdol Take-Up Assembly	VE12	03
215356	EE309042	Rivet, Aluminum, 2.5 X 8mm	VE27	02
215482	EE303502	Clip, Yarn, for Overfeed Cover	VE11	15
			VE16	05
215793	EE303520	Plate, Bottom Channel	VE16	19
(215808)	EE304710	Creel Support Disc, E&C Fiber	VE14	34
			VE15	11
(215812)	A-18051	T-Handle for E Creel	VE14	08

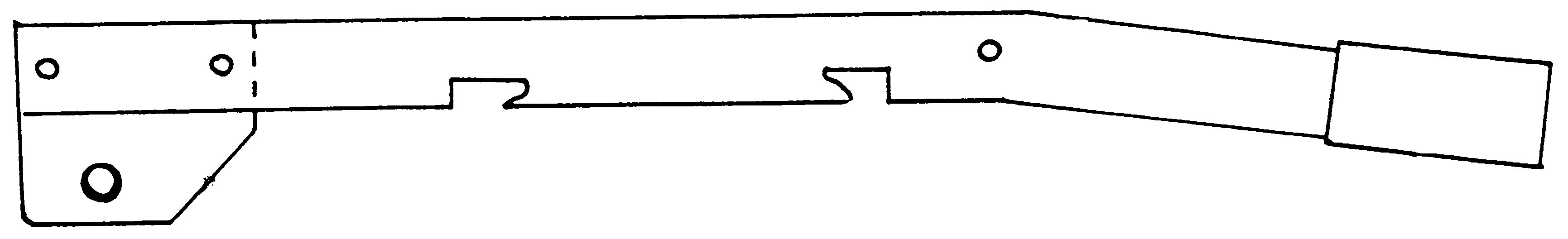

(215814)	A-18283	Latch, 400 Safety Kit (E) (3/4" Shaft)	VE14	28
	A-18283A	Latch, 400 Safety Kit (E) (20mm Shaft)		28A
	A-18284	Latch, 450 Safety Kit (E)		28B
(215951)	A-18055	Bracket, Pretension Mounting	VE14	40
215958	EE303580	Stud, Tailing with Set Screw	VE10	36
215977A00	EE303600	Flange,Take-Up Tube	VE12	02
(215991A00)	EE303620A	Down Tube Assembly with Brackets (Top Channel Open)	VE16	01
215992A01	EE303520	Plate, Bottom Channel	VE16	19
(216049)	EE304720	Arm, Extension, E Creel (A-18054)	VE14	26
	EE304800	Creel, E, Complete (A-18239)		00
(216128)	EE304700	Arm, E Creel (A-18049)	VE14	35
216316	EE303610	Stud, Short Guide Holder for EE303614	VE09	07
(216316)	EE303611	Stud, Long Guide Holder for EE303615	VE09	06
216318	EE303612	Plate, Centering Guide Fitting	VE09	05
(216901)	EE380020	Roller, V-Groove Assembly	VE16	18
			VE22	01
216935	EE303640	Support, Bottom Roller, 400 Gauge	VE16	20
(216935)	EE303640-1	Support, Bottom Roller, 600 Gauge	VE16	20A
217498J00	EE303470	Tubing, Traverse, 10X1598mm	VE03	07
(217793)	EE340026	Creel, Epic Style Overhead, for Model 450 Verdol, 120 Position, Manual Safety Latch	VE14	00A
218047A	EE305548-1	Friction Roller, Grooved, Without Cot, for Verdol 450	VE24	04
218147A	EE305548	Friction Roller Assembly, Verdol 450, with Narrow Cot	VE24	03
218149A01	EE305545	Friction Roller Assembly, ICBT and Verdol 450 with Full Length Cot	VE24	01
(218149A01)	EE305550	Install Epic Full Length Cot EE305542 on Customer's Cotless Roll, ICBT and Verdol 450 (Minimum 12 pieces)	VE24	02A
	EE309103	Strip Customer Verdol 450 or ICBT Friction Roll and install Full Length Cot EE305542 (Minimum 12 pieces)		01A
218151A01	EE305545-1	Friction Roller without Cot for ICBT and Verdol 450	VE24	02
(218151A01)	EE305550	Install Epic Full Length Cot EE305542 on Customer's Cotless Roll, ICBT and Verdol 450 (Minimum 12 pieces)	VE24	02A
218154A01	EE305549	Cot, Gray, 89.5 X 138 X 2mm for Verdol 450 Friction Roll	VE24	07
218155A01	EE305542	Cot, Gray, Full Length, 89.5 X 276 X 2mm for Verdol 450 and ICBT Friction Rolls	VE24	06
218642A00	EE380022	Roller, V-Groove for Roller Assembly EE380020	VE22	05
218643F01	EE380021	Cap, End for Roller Assembly EE380020	VE22	04
218842A00	EE380020	Roller, V-Groove Assembly	VE16	18
			VE22	01
219111A01	EE303470-1	Tubing, Traverse, 10X1998mm	VE03	07A
219944A00	EE303472	Roller, Traverse, Verdol Type	VE03	08
220240A00	EE380059	Eyelet Retaining Piece for Hub/Reserve	VE18	46
			VE19	30
			VE20	31
221789A01	EE305547	Friction Roll with Cot, Verdol 400 and 500	VE24	05
(221789A01)	EE309101	Strip Customer Verdol 400 Friction Roll and Install EE303462-3 Cot (Minimum Order: 12 Pieces)	VE24	03A
22294106	EE438000V	Screw, Slotted Pan Head Tapping, 2.9x9.5	VE19	07
22295201	EE309041	Screw for Eyelet Holder	VE20	32
(22513001)	A-18356	Washer, Regular Flat 3/8", Plated	VE09	13
			VE14	38
			VE15	17
			VE16	14
			VE23	05
22513401	EE431602V	Washer, Regular Flat, 8mm	VE09	13
22520201	EE303860	Washer, External Serrated Lock, 5mm (Unplated)	VE01	20
				74
			VE01A	55
			VE02	21
			VE10	14
			VE18	35
			VE19	43
22534701	EE380166	Washer, Wave, for RM, F44 & ICBT N Spindle	VE18	48
			VE19	22
			VE20	02
			VE27	10
230119	EE340045	Disc and Reserve Assembly, Stainless, 260 X 175mm, RM, F44 & ICBT	VE18	44B
270123	EE301317V	Pre-Take-Up/Overfeed Assembly, 31 Flute Chrome "Volkmann Type" with Locking Collar	VE11	11
300308	EE309032	Bearing for Roller Assembly EE380020	VE22	06
301331	EE309047	Bearing, F44 Housing (NTN)	VE19	10
301634	EE304245	Bearing, Whorl, for F44, 63203	VE19	46
301642	EE304300	Bearing, N Spindle, 450, 6201ZC3	VE18	28
			VE19	20
			VE27	06
301650	EE305540	Bearing, Ball, 6201, for ICBT N Spindle	VE20	15
301651	EE305541	Bearing, Ball, 6202, for ICBT N Spindle	VE20	16
311605	EE304390	Pulley, Tape Tension (50mm) for Model 450	VE17	03
318580	EE304540	O-Ring for Spindle Housing	VE01	50
			VE01A	30
			VE18	09
			VE27	05
318581	EE309044	O-Ring 9.5 X 1.5mm	VE01	38A
			VE18	47
			VE19	31
			VE20	29
318597	EE304480	O-Ring, R Base	VE01	72
			VE01A	51
			VE18	18
318598	EE304500	O-Ring, Top Bearing Upper	VE01	10
			VE01A	07
			VE05A	09
			VE18	23
			VE19	15
			VE20	21
318603	EE304530	O-Ring 35 X 1.6	VE01	51
			VE02A	03
			VE05A	14
			VE19	45
(318625)	EE303435	O-Ring, Small, Internal, for 450 Base Shell and ICBT Base Shell	VE07	09

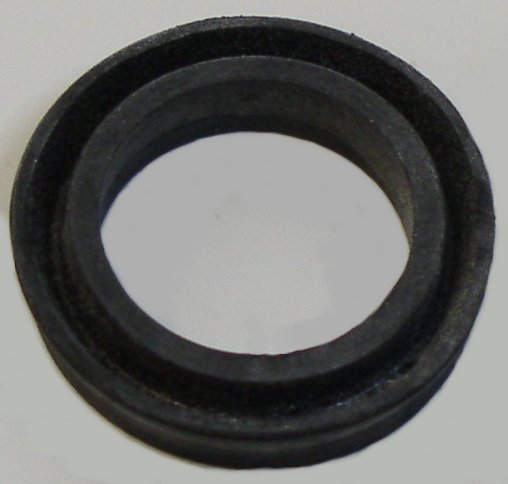

318669	EE380193	Seal Ring for Brake Piston, ICBT N-Spindle	VE20	14
318976	EE380178	Pre-Take-Up/Overfeed, O-Ring, ICBT Type	VE25	05
3202	EE304222	Bearing, R Spindle Housing, Double Seal, 3202.2RS	VE01A	31A
			VE18	08
(331593)	EE304340	Tape, Spindle Drive, .63 X 40.5" (16mmX1030mm), 450 and ICBT	VE17	01B
(331631)
(338146)	EE309071	Spring Plunger, with Ball End, 5mm	VE21	07
354797	EE309090	Fitting, Grease, for Verdol Spindle Housing and Base Cap	VE01	79
				60
			VE01A	29
				NS
				53
			VE18	07
			VE19	09
363375	EE401480V	Traverse Thread Guide Ceramic Tip, 3.0mm	VE10	02
(440114C)-SKF	EE304242	Bearing, R Whorl, NTN	VE01	54
			VE01A	35
			VE18	49
50324100	EE380179	Pre-Take-Up/Overfeed, Washer, ICBT Type	VE25	03
520012A	EE303680	Screw, Upper Cylinder	VE01	30
520021A	EE303700	Screw, Hex Head Cap, 5X10	VE01A	39
520022A	EE303720	Screw, Hex Head Cap, 5X25	VE01	21
520024A	EE303720-1	Screw, Hex Head Cap, 5X40	VE18	36
			VE19	44
52030C00	EE380141	Magnet, for Verdol F44, RM and ICBT	VE18	03
			VE19	03
			VE20	04
				08B
524501B	EE330358	Screw, Socket Head Cap, 5X25, Zinc Plated	VE27	17
524509B	EE303760	Screw, Socket Head Cap, 5X16	VE01	75
			VE01A	56
			VE02	22
			VE18	43
			VE19	50
(524509B)	EE401876V	Screw, Socket Head Cap 5X16	VE10	34
524513B	EE430220V	Screw, Socket Head Cap 6X10	VE27	04
524514	EE303613	Screw, Socket Head Cap, 6X16	VE09	03
			VE27	19
524515	EE303609	Screw, Socket Head Cap, 6X20	VE09	10
524518	EE303760-1	Screw, Socket Head Cap, 5X25	VE20	20
524518B	EE430227V	Screw, Socket Head Cap 6X30	VE10	20
524524B	EE330234	Screw, Socket Head Cap, 6 X 75	VE09	09
524551B	EE303760-1	Screw, Socket Head Cap, 5X25	VE20	20
524600B	EE330350	Screw, Socket Head Cap, Zinc Plated, 6X 35	VE22	02
536028B 536604B	EE303780	Screw, Hex Socket Cone Point Set, 6X12	VE01	33
			VE18	50
			VE19	18
53862500	EE380176	Pre-Take-Up/Overfeed, Male Half, ICBT Type	VE25	02
53862600	EE380177	Pre-Take-Up/Overfeed, Female Half, ICBT Type	VE25	06
